Barcode printing setup

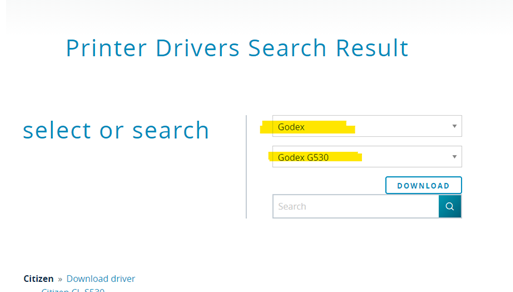

Install the driver software

Click here

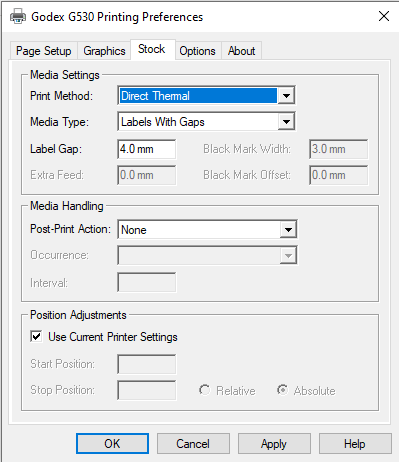

In printing preferences for the printer use the following settings:

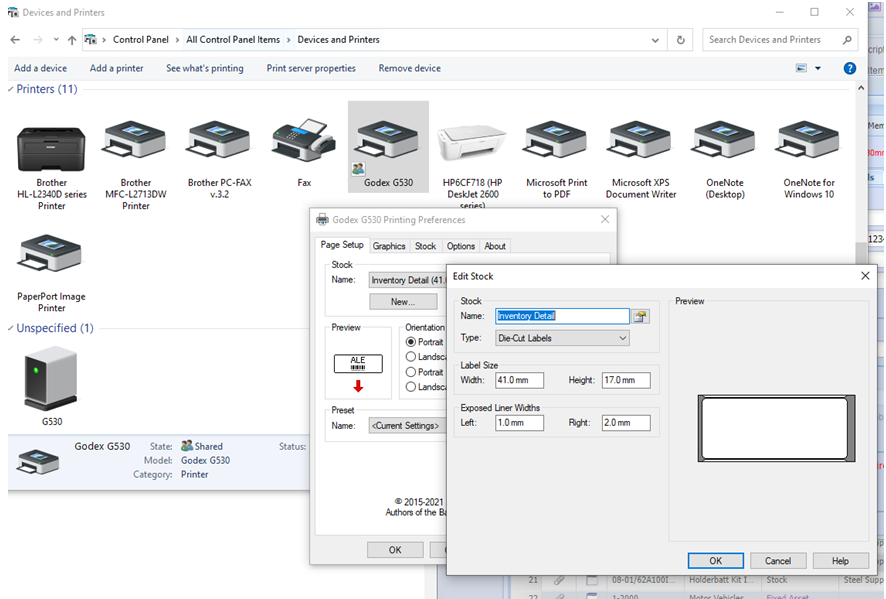

Changing the width and Height of the label

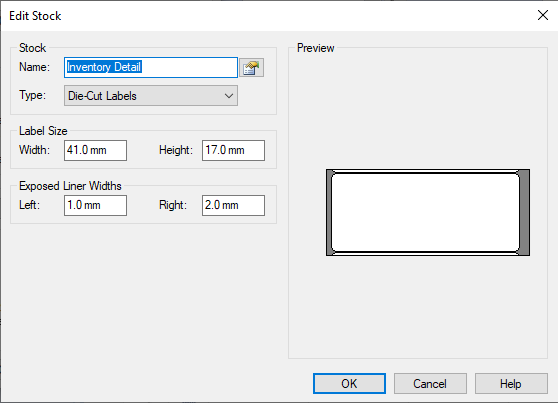

Label size changes

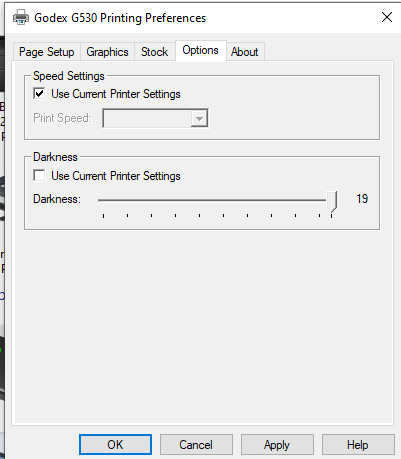

(turning the darkness up this high or at all may not be required, but the barcodes that was printing were faded until we adjusted this setting)

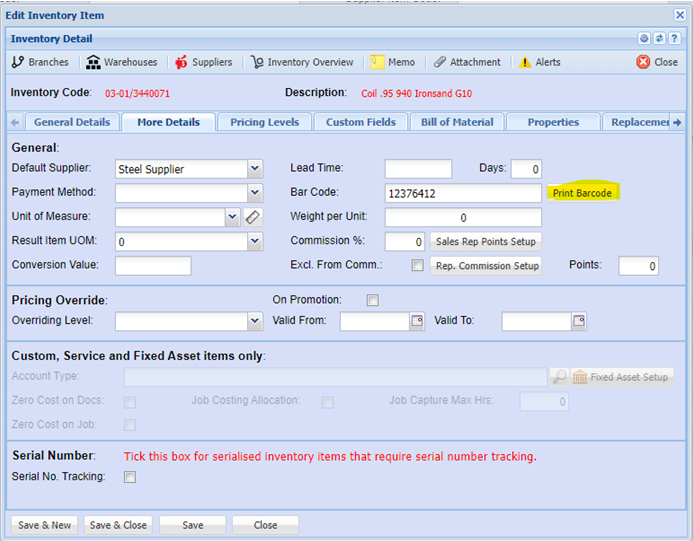

To print the barcode the button highlighted below is clicked. The size of the barcode and text is currently set specifically for the label and printer as set up above.

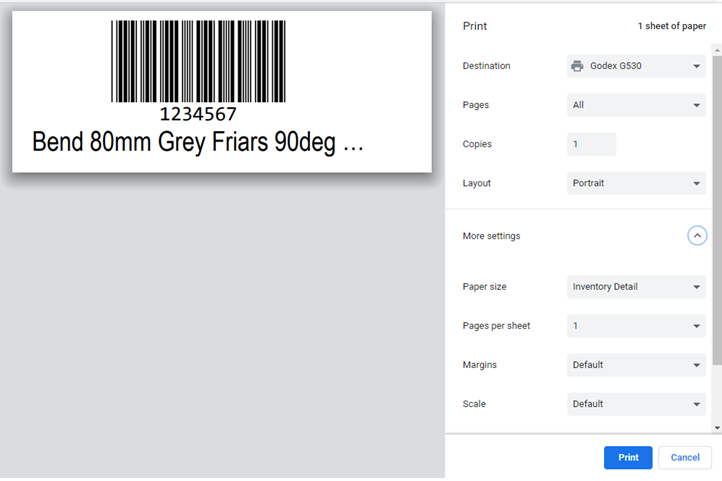

In the print dialog:

a.select the printer

b.Select the paper size as the “Stock” defined in the printer preferences

Use default for margins and scale and set layout to portrait
